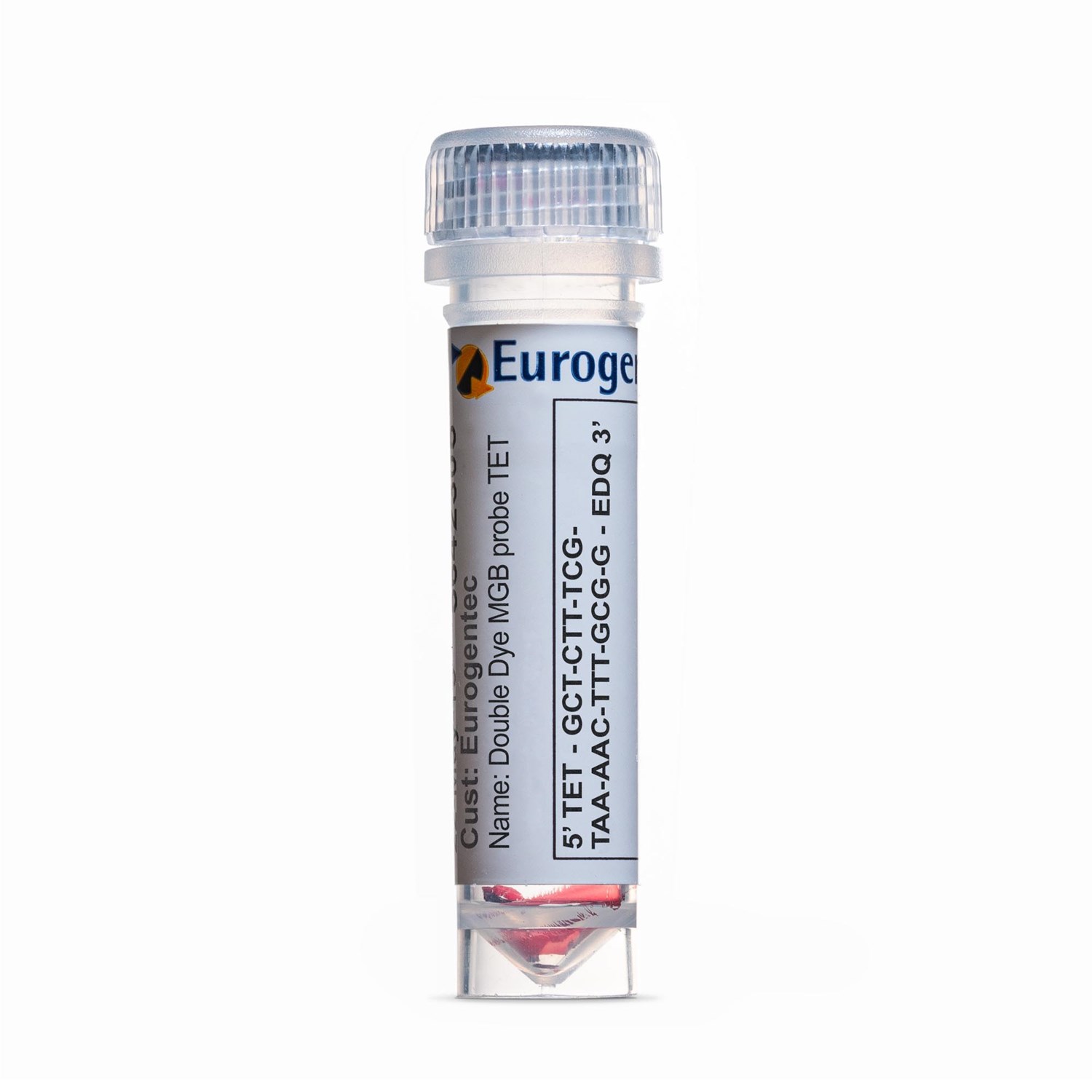

Double Dye MGB probe 5' TET-labelled - 1 probe

Minor Groove Binder probes (MGB Probes) are double-dye probes forming highly stable duplexes with their targets. MGB Probes have a fluorescent reporter dye and a quencher at their 5’ and 3’ ends, respectively. The MGB moiety is linked to the Quencher at the 3’ end.
The minor groove binder increases the Tm of a probe. Therefore MGB probes are more specific, more efficient and more sensitive than standard dual-labelled probes.

Relying on a 35-year expertise in oligonucleotide manufacturing, Eurogentec provides high quality MGB-Eclipse® probes perfectly suited for any application.

Benefits
• High signal to noise ratio for sensitive detection
• Delivered quantities: 6 - 20 - 50 nmol
• Custom scales on request
• Complete offer: More than 15 Dyes available, covering all qPCR channels
• Free Wobble bases: Available at no additional cost

MGB probes are RP-HPLC purified and controlled by MALDI-TOF Mass Spectrometry and HPLC. MGB probes can be provided in solution or dried in bulk or aliquoted in separate vials.

How do the MGB probes work?
MGB Probes are designed to anneal between the upstream and downstream PCR primers.
During the amplification process, the 5’-> 3’ exonuclease activity of the Taq DNA polymerase cleaves the fluorophore from the probe. Since the fluorophore is no longer subjected to FRET quenching, it starts to fluoresce. This fluorescence can be measured, and the level is directly proportional to the amount of target DNA accumulating during the PCR reaction.

Fluorescent Dye: TET - Absorbance = 521 nm, Emission = 536 nm
